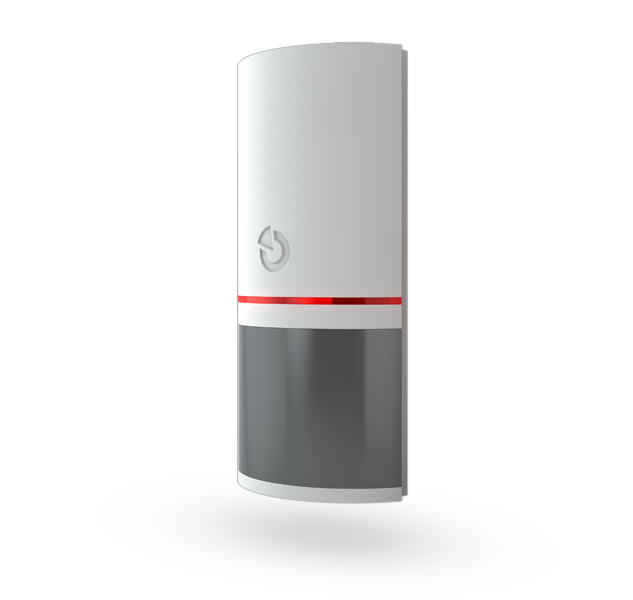

JA-151P-WG Wireless PIR motion detector
Its guaranteed detection coverage is 90° / 12 m and in the version with a gray lens its resistance to white light is significantly higher than the values prescribed by the standard, which helps reduce false alarms caused for example by car lights shining through the windows, by lightning strikes or reflective objects. It has an implemented SMART WATCH function for the recognition of alarms and the subsequent extension of the battery life. The product is the result of design objectives for very high quality and with its aesthetic shape it fits into any installation variant, even in luxurious interiors. In addition to standard positioning in a corner of a room, it can be installed on a wall surface using the beautiful JA-193PL frame, where the detector is partially recessed and forms a very harmonious and elegant whole with the wall. The hinge holder JA-191PL can be used for special applications such as ceiling mounting or oblique detection angle.
- The detector is equipped with impulse activation.
- The detector can be used to control programmable PG outputs.
- False alarm resistance can be set to two levels.
- The detector is a component of the JABLOTRON 100 system, is addressable and occupies one position in the system.
Specifications
| Compatible with | F-Link 1.4.0 or higher |
|---|---|
| Power source | 2 AA alkaline batteries (LR6) 1.5 V 2400 mAh (Warning: Batteries are not included in the product package) |
| Typical battery life | approx. 2 years (longest in SMART WATCH mode) |
| Communication tape | 868.1 MHz, JABLOTRON protocol |
| Communication range | approx. 300 m (free terrain) |
| Recommended installation height | 2.5 m above floor level |
| Detection angle / detection range | 90° / 12 m |
| Sizes | 62 x 130 x 38mm |
| Classification | safety level 2 / environmental class II |
| In accordance with | EN 50131-1, EN 50131-2-2, EN 50131-5-3 |
| Environment according to | EN 50131-1 II. indoor, general |
| Operating temperature range | -10 °C to +40 °C |
| This also meets the requirements of | ETSI EN 300 220, EN 50130-4, EN 55022, EN 60950-1 |
| Terms of Business | ERC REC 70-03 |
……………………………….
Jan Tucek, designer:
“The appearance of the new PIR detector is crucial – it is the cornerstone of the entire security system. The simple basic shape of the detector is the intersection of all requirements regarding functionality, control and installation. At the same time, it very characteristic and clearly recognizable as a Jablotron product.”
