JA-112E BUS RFID bedienpaneel

Beschrijving

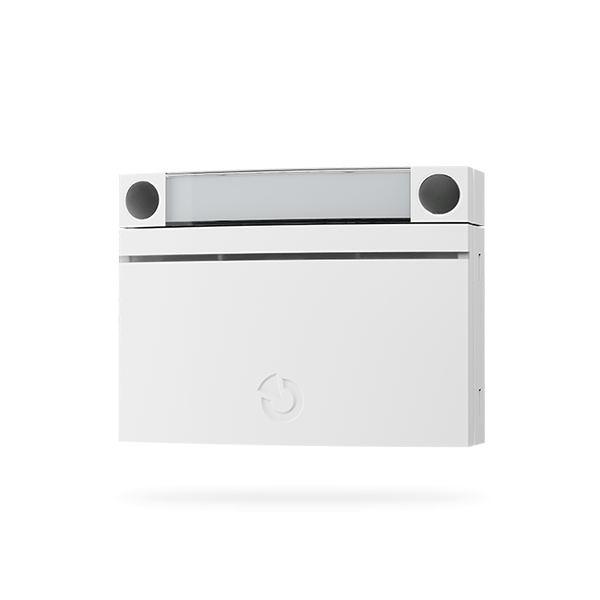

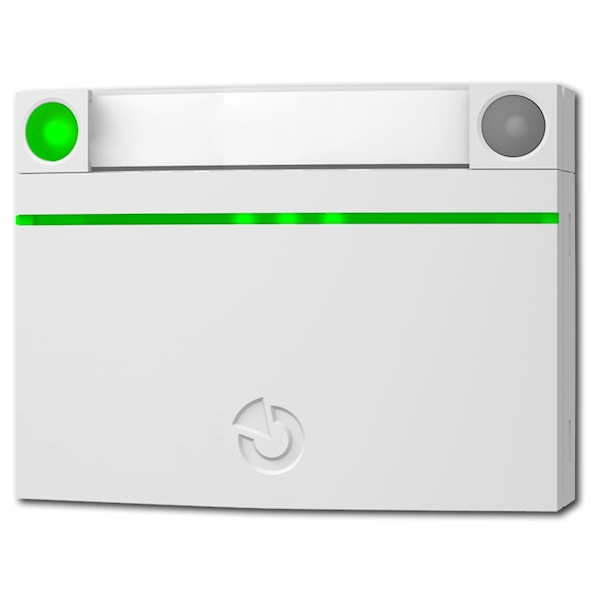

JA- 112E Bus RFID Control Panel The JA – 112E is an access module with an RFID reader to operate a JA- 100 alarm system . Contains an operating segment and , if required , can be equipped with up to 20 control segments . The JA- 112E allows easy operation of the system using interlocking segments . Communicates and is powered by the bus . The module has an energy saving function . The module is addressable and occupies a position in the alarm system . specifications Power control panel bus ( 9 … 15 V ) Power consumption in standby ( latent) 10 mA Power consumption for cable selection 15 mA Current for each segment 0.5 mA RFID frequency 125 kHz Operating temperature -10 to + 40 ° C Environment EN 50131-1 . general indoor Classification grade 2 according to EN 50131-1 , EN 50131-3 Complies with ETSI EN 300330 , EN 50130-4 , EN 55022 , EN 60950-1 Can be operated to the ERC REC 70-03
