Beschrijving

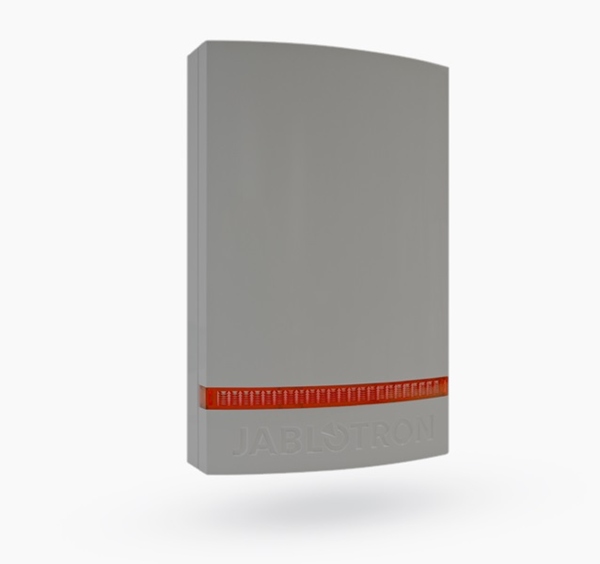

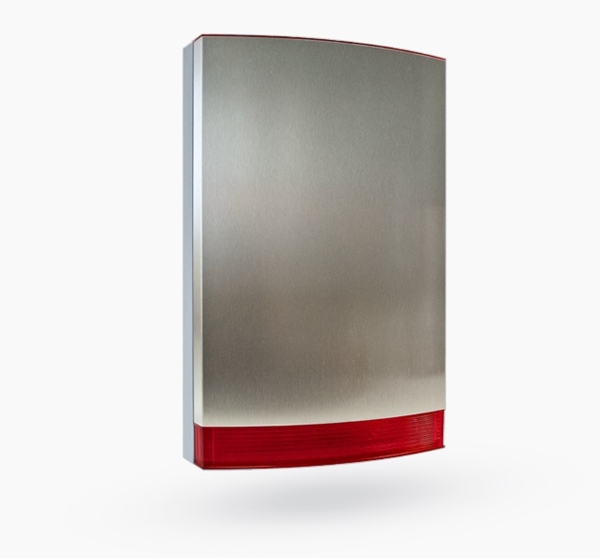

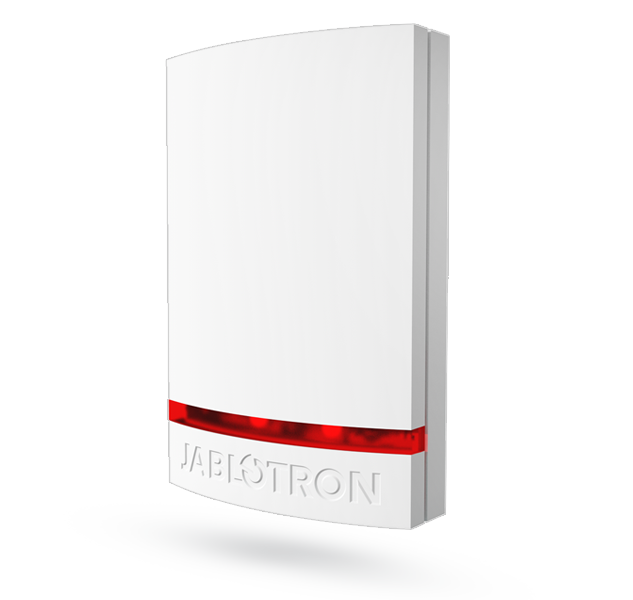

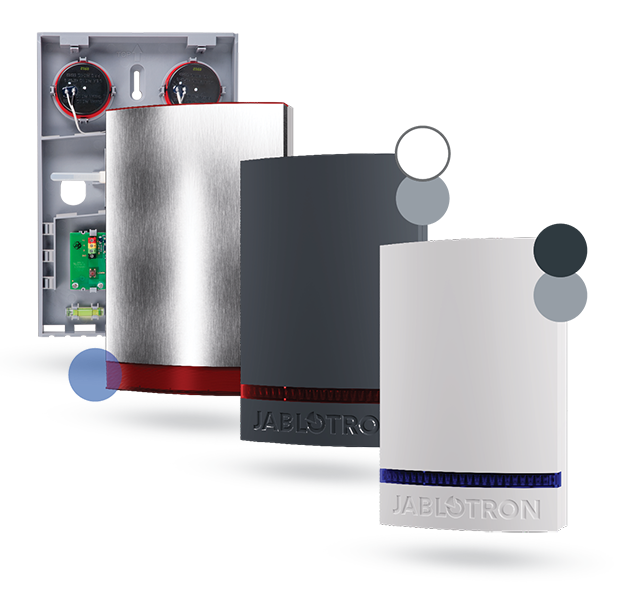

Jablotron 100 JA-111A Wired outdoor siren
The Jablotron JA-111A BUS external backup siren is designed for audible alarms and PG output activation and deactivation. The siren communicates and is powered by the BUS of the control panel. In the event of a power failure, the implemented energy saving function will be used. The siren also has a built-in spirit level so that adjustments can easily be made during installation. It is possible to assign it as a zone and it only occupies one position in the alarm system. Specifications :
- Power supply: via the BUS of the central unit, 12V (9 – 15 V)
- Power consumption during power failure: 5 mA
- Power consumption during battery charging: 50 mA
- Backup battery: NICd battery 4.8 V/ 1 800 mAh
- Siren: piezo electric, 110 dB/m
- Dimensions: 158 x 230 x 75 mm
- Safety class 2 in accordance with EN 50131-1, EN 50131-4
- Environment in accordance with EN 50131-1: outdoor IV
- Operating temperature: -25 to 60 °C
- protection: IP 34D
